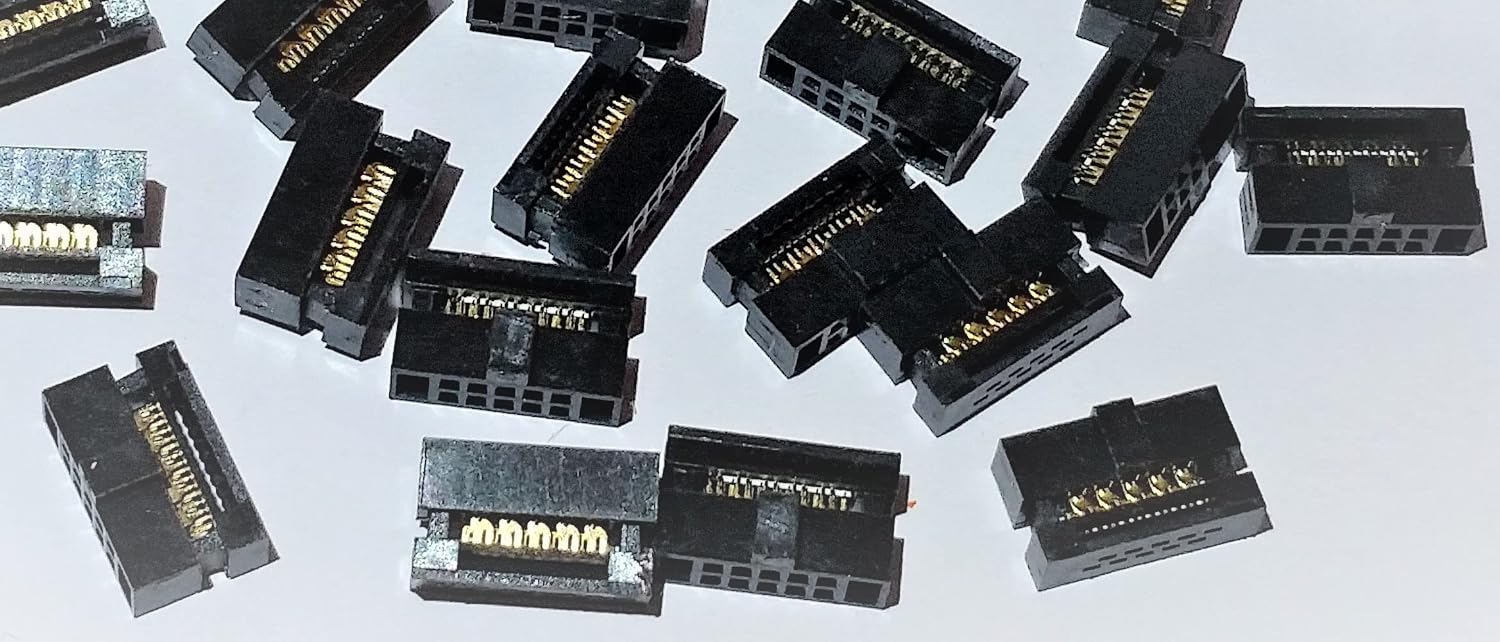

10P 20-Pack 1.27mm 0.05" Pitch Mini Dual Rows IDC FC Female Sockets Terminates to 0.635mm Flat Ribbon Cable (FC-10P-20PK)
Product details
| Management number | 247546241 | Release Date | 2026/08/16 | List Price | US$3.18 | Model Number | 247546241 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
PRICE is for 20-PACK, Dual-Row 127mm Socket, IDC, 10 Position, IDC Flat Ribbon crimp Connectors These connectors mate with any 1.27mm spaced dual-row pin headers. The insulation displacement (IDC) contacts on these connectors allow them to be quickly and easily crimped onto flat ribbon cable. NUMBER OF PINS: 10P 2X5 IDC SOCKET-RECEPTACLE 1.27mm x 1.27mm DUAL ROW IDC FEMALE CONNECTOR FEMALE CONNECTOR WITH POLARIZING CENTER BUMP, NO STRAIN RELIEF MATES WITH 1.27 mm PITCH SOCKETS TERMINATES to 0.635mm (0.025") pitch FLAT RIBBON CABLE
- Price is for 20-Pack in Connectors Pro Retail Box
- 2X5 10 Pins IDC Socket-Receptacle 0.05" x 0.05" (1.27mm x 1.27mm) Dual-row Sockets
- FEMALE CONNECTOR WITH POLARIZING CENTER BUMP, NO STRAIN RELIEF
- Specifications: Current Rating: 1AMP; Operation Temperature: -40°C to +105°C ; Contact Resistance: 20mΩ Max. at DC 100mA ; Insulation Resistance: 1000MΩ Min. at 500V DC
- MATES WITH 1.27 mm (0.05") PITCH HEADERS; TERMINATES TO 0.635mm (0.025") pitch FLAT RIBBON CABLE
| ASIN | B01EHG9A6M |
|---|---|
| Color | Black |
| Model | IDC-1.27MM-10P-20PK |
| Brand Name | Connectors Pro |
| Cable Type | 0.635mm Flat Cable |
| Item Shape | Round |
| Model Name | IDC-1.27MM-10P-20PK |
| Unit Count | 20 Count |
| Part Number | 127-FC10P-20PK |
| Manufacturer | Mii |
| Connector Type | 1.27mm 10p Fc |
| Item Type Name | 1.27mm 10P FC 20-Pack |
| Number of Pins | 10 |
| Maximum Current | 1 milliamps |
| Number of Items | 20 |
| Connector Gender | Feamle |
| Compatible Devices | PC |
| Indoor Outdoor Usage | Indoor, Outdoor |
| Customer Package Type | Flat Free Package |
| Compatible Phone Models | Compatible with smartphones, specific models not listed |
| Recommended Uses For Product | 1.27mm FC |
| Other Special Features of the Product | Tangle Free |
